130SV300-48V-30EA2

130SV300-48V-30EA2

Size 130 mm  |  Length (L) 221 mm  |  Nominal Voltage 48 VDC   |  Rated Torque 14.3 Nm  |  Rated Speed 2000 rpm  |  Brake 24VDC - 16Nm

Product Code: 130SV300-48V-30EA2

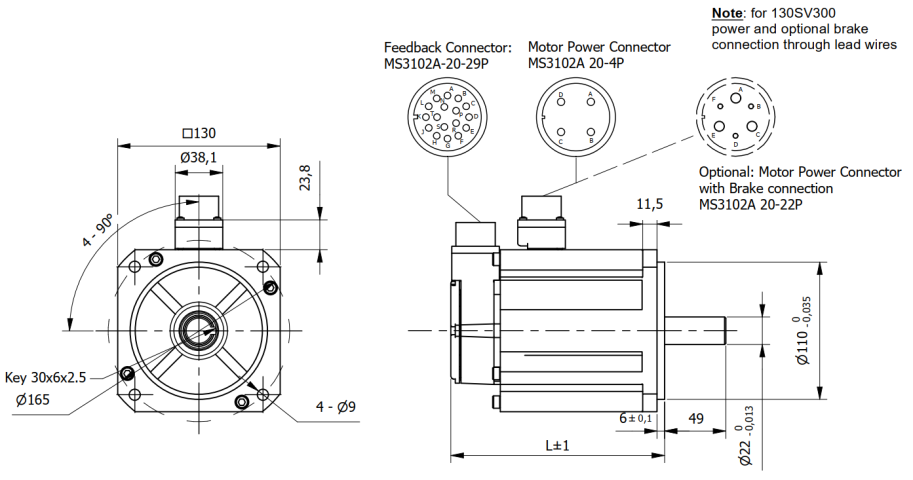

Technical Data Download Dimensions Combinations
Size130 mmLength (L)221 mm
Nominal Voltage48 VDC Rated Torque14.3 Nm
Rated Speed2000 rpmn° of Pole10
n° of Phase3 Rated Power3000 Watt
No-Load Speed3000±10% rpmMax. Peak Torque42.9 Nm
Torque Constant0.2 Nm/ARated Current79.3 A
Max. Peak Current237.9 ANo-Load Current<8 A
Back EMF constant12 V/kRPMLine to Line Resistance0.016±10% Ohm
Line to Line Inductance0.1±20% mHRotor Inertia20.2 Kgcm2
Brake24VDC - 16Nm Weight15.2 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.12mm (max.4N) mm
Max. Radial Force (30mm from flange)490 NMax. Axial Force196 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
