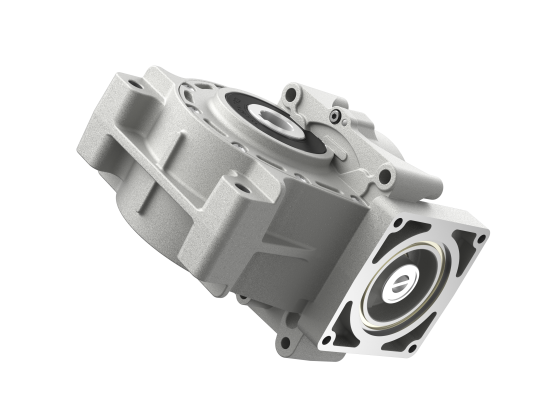

Worm & Wheel gearboxesOur right-angle worm and wheel gearboxes provide a compact solution for applications requiring a 90° transmission. They deliver high reduction ratios and smooth, quiet operation. They also feature self-locking capability, preventing back-driving and ensuring reliable holding torque.
 More about Worm & Wheel gearboxes |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
GWS
Worm & wheel gearboxes
| Size (mm) | 51 |
| Length (L) (mm) | 44 |
| Reduction Ratio | 4 - 70 |
| Nominal Output Torque (Nm) | 2 - 4,5 |
| Max. Output Torque (Nm) | 3,2 - 7,2 |
GW58
Worm & wheel gearboxes
| Size (mm) | 53 |
| Length (L) (mm) | 43 |
| Reduction Ratio | 4 - 25 |
| Nominal Output Torque (Nm) | 4 |
| Max. Output Torque (Nm) | 8 |
GW80
Worm & wheel gearboxes
| Size (mm) | 54 |
| Length (L) (mm) | 56 |
| Reduction Ratio | 4 - 72 |
| Nominal Output Torque (Nm) | 5 - 12 |
| Max. Output Torque (Nm) | 8 - 19 |
GW12
Worm & wheel gearboxes
| Size (mm) | 73 |
| Length (L) (mm) | 62 |
| Reduction Ratio | 12,5 - 75 |
| Nominal Output Torque (Nm) | 18 - 30 |
| Max. Output Torque (Nm) | 29 - 48 |
GWL
Worm & wheel gearboxes
| Size (mm) | 88 |
| Length (L) (mm) | 76 |
| Reduction Ratio | 5 - 60 |
| Nominal Output Torque (Nm) | 15 - 19 |
| Max. Output Torque (Nm) | 15 - 22 |
GW65
Worm & wheel gearboxes
| Size (mm) | 90 |
| Length (L) (mm) | 86,3 |
| Reduction Ratio | 20 - 160 |
| Nominal Output Torque (Nm) | 120 |
| Max. Output Torque (Nm) | 300 |
