Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI060

IVI060 0200NX3000 P-S200

Size 60 mm | Length (L) 131 mm | Interface Profinet | Rated Power 200 Watt | Rated Voltage 48 Vdc

Product Code: IVI0600200NX3000P-S200

Technical Data

Download

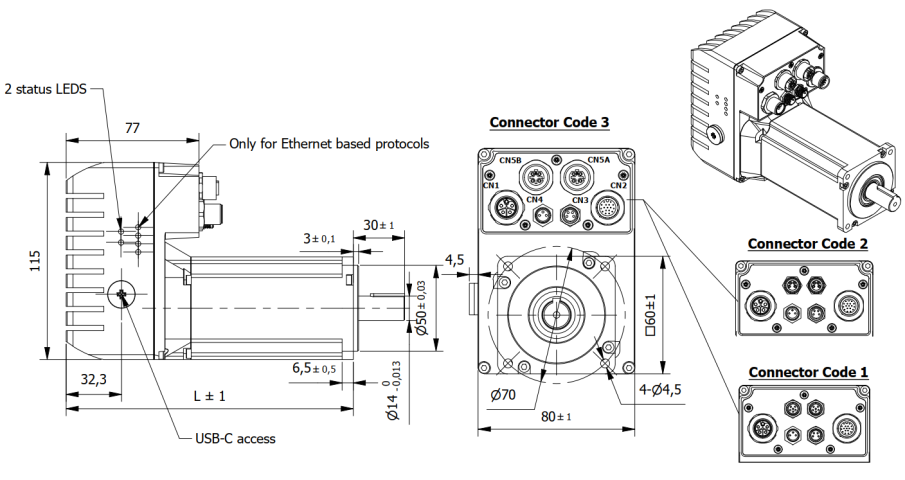

Dimensions

Combinations

Software

Accessories

Size	60 mm	Length (L)	131 mm
Interface	Profinet	Rated Power	200 Watt
Rated Torque	0.64 Nm	Rated Current	6 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	1.92 Nm
Torque Constant	0.107 Nm/A	Max. Peak Current	18 A
No-Load Current	600 mA	Back EMF constant	6.5 V/kRPM
Rotor Inertia	150 gcm²	Weight	1.43 Kg
Shaft run out	0.05 mm	Insulation Class	F 155°C
Protection Class	IP65	Operating Temperature	+5°C to +40°C
Humidity	5% to 85% not condensing	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.14 mm	Max. Radial force (at mid-shaft)	245 N
Max. Axial Force	98 N	Dielectric Strength (for 1min.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Operating mode	Position, Speed, Torque
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	Magnetic Absolute (single-turn, BiSS): 17bit, 16bit
Protective functions	Over/Under voltage, Over current, Overheating, Short circuit	Safety feature	Safe Torque Off (STO) SIL3/PLe
Debug & configuration	Serial interface	Digital Inputs	4 not isolated 5-24 Vdc PNP
Analog Inputs	2 not isolated \| 0-10 Vdc	Digital Outputs	2 not isolated 24 Vdc PNP
