Home Products > Motors with integrated Controller > BLDC Servo motors with Motion controller > IVI060 with Brake

IVI060 0400BX3000 H-S200

Size 60 mm | Length (L) 188 mm | Interface EtherNet/IP | Rated Power 400 Watt | Rated Voltage 48 Vdc | Brake 24VDC - 1.5Nm

Product Code: IVI0600400BX3000H-S200

Technical Data

Download

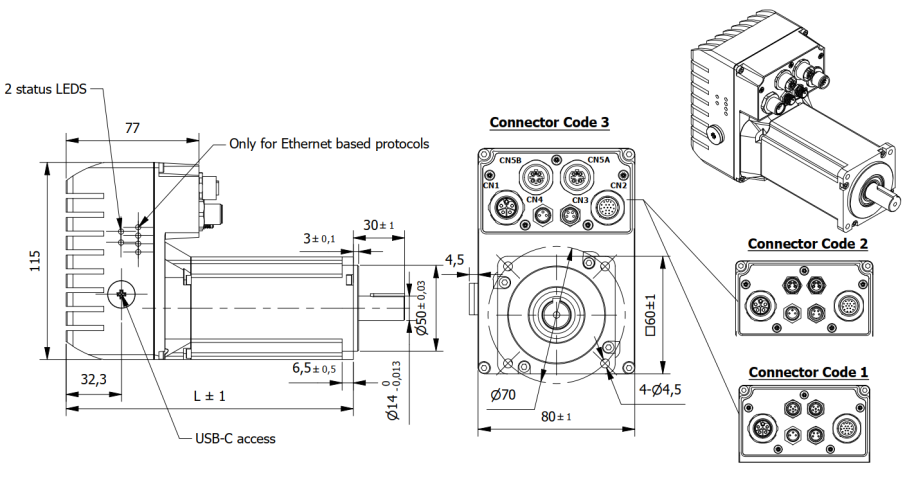

Dimensions

Combinations

Software

Accessories

Size	60 mm	Length (L)	188 mm
Interface	EtherNet/IP	Rated Power	400 Watt
Rated Torque	1.27 Nm	Rated Current	12 A
Rated Voltage	48 Vdc	n° of Pole	10
Rated Speed	3000 rpm	Max. Peak Torque	3.81 Nm
Torque Constant	0.107 Nm/A	Max. Peak Current	36 A
No-Load Current	<1000 mA	Back EMF constant	6.5 V/kRPM
Rotor Inertia	250 gcm²	Brake	24VDC - 1.5Nm
Weight	2.25 Kg	Shaft run out	0.05 mm
Insulation Class	F 155°C	Protection Class	IP65
Operating Temperature	+5°C to +40°C	Humidity	5% to 85% not condensing
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.14 mm
Max. Radial force (at mid-shaft)	245 N	Max. Axial Force	98 N
Dielectric Strength (for 1min.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating mode	Position, Speed, Torque	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	Magnetic Absolute (single-turn, BiSS): 17bit, 16bit	Protective functions	Over/Under voltage, Over current, Overheating, Short circuit
Safety feature	Safe Torque Off (STO) SIL3/PLe	Debug & configuration	Serial interface
Digital Inputs	4 not isolated 5-24 Vdc PNP	Analog Inputs	2 not isolated \| 0-10 Vdc
Digital Outputs	2 not isolated 24 Vdc PNP
