- Up to 4500 N per wheel and speeds up to 6 m/s

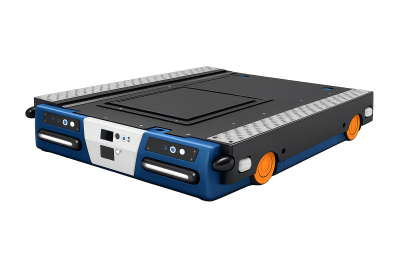

- Optimized solutions for AGV/AMR mobility

- Absolute and incremental encoders
- Closed-loop control for smooth motion

- High-efficiency motors
- Optimized power-to-weight ratio

- Compact design and Fieldbus connectivity
- Simple and fast commissioning

- Solutions for on-board load handling
- Under-drive pick-up and fast-swap battery systems

- Designed for continuous operation
- Solutions suitable for cold environments

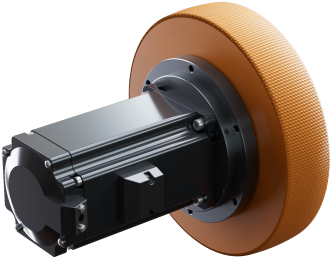

WH60 & WH80 – Wheel Hub

- Rated Power: 120–1000 W
- Max. Radial Load: 800–4500 N
- Max. Linear Speed: up to 6 m/s

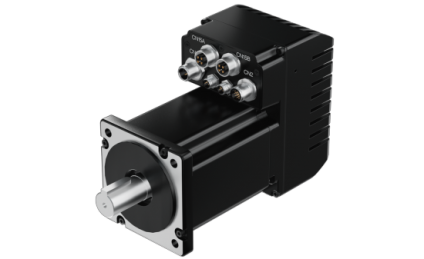

IVIX60 Integrated Servo Motor

- Rated Power: 200–400 W
- Rated Torque: 0.64–1.27 Nm
- Rated Voltage: 48 VDC

IVI060 Integrated Servo Motor

- Rated Power: 200–400 W
- Rated Torque: 0.64–1.27 Nm
- Rated Voltage: 48 VDC

IVI080 Integrated Servo Motor

- Rated Power: 750–1000 W
- Rated Torque: 2.39–3.18 Nm
- Rated Voltage: 48 VDC

GP56 & GP80 – Planetary Gearboxes

- Reduction Ratio: 3.293–256.23
- Rated Output Torque: 13.55–67 Nm
- Max. Input Speed: 3184–13000 rpm

Worm & Wheel Gearboxes

 - Reduction Ratio: 4:1 – 160:1
- Nominal Output Torque: up to 120 Nm
- Max. Output Torque: up to 300 Nm


Motors with integrated controllers reduce space requirements and simplify installation and commissioning, opening up a wide range of application possibilities.

Our high-performance planetary gearboxes are designed for robustness and to withstand intermittent or sudden load variations.
