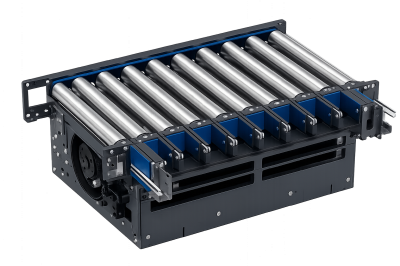

Compact Motion Solutions for High-Speed Transfer Units.
Fast, precise lifting and transfer
Compact design for continuous operation
High-Speed Throughput
- High acceleration for fast, precise transfers
- Load handling up to 80 kg |
Precision & Accuracy
- Accurate positioning and synchronized motion
- Closed-loop control for precise lifting and transfer |
Compact Design
- High power density and compact integrated drives
- Optimized for space-constrained installations |
Easy Integration
- Fieldbus connectivity and simple commissioning
- Flexible integration into existing systems |
Reliability & Low Noise
- Optimized gearboxes for quiet, reliable operation
- Designed for long service life and continuous duty |
Flexible Motion Architecture
- Solutions for lifting and transfer axes
- Configurable motors, gearboxes, drives and electronics |

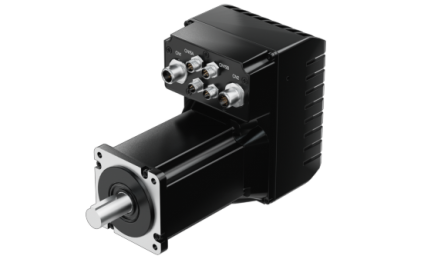

IBIX57 Integrated BLDC motor
- Rated Power: 25-335W
Rated Torque: 0,06–0,8 Nm - Operating Voltage: 24-48 VDC |

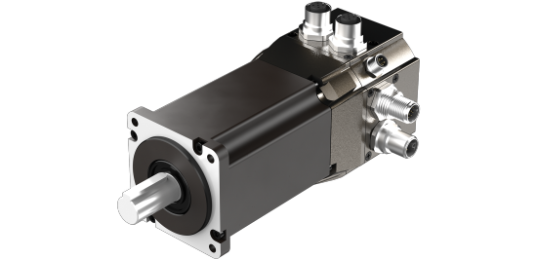

IVIX60 Integrated Servo motor- Rated Power: 200–400 W
- Rated Torque: 0,64–1,27 Nm - Rated Voltage: 48 VDC |

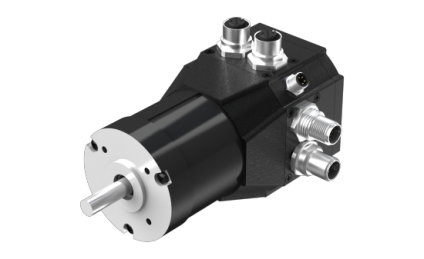

IVI060 Integrated Servo motor- Rated Power: 200–400 W
- Rated Torque: 0,64–1,27 Nm - Rated Voltage: 48 VDC |

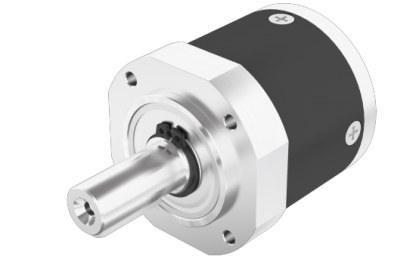

GP56-T Planetary gearbox- Reduction Ratio: 3.55–256.23
- Rated Output Torque: 29.3–62.5 Nm - Max. Input Speed: 3000–8000 rpm |

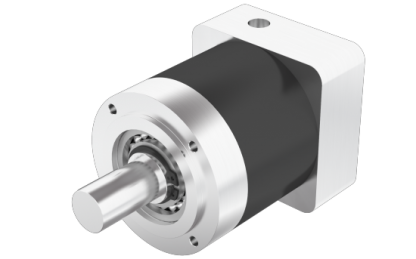

GP80-T Planetary gearbox
- Reduction Ratio: 3.55–256.23
- Rated Output Torque: 29.3–62.5 Nm - Max. Input Speed: 3000–8000 rpm |

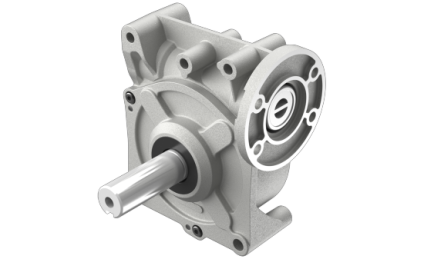

Worm & Wheel |
| Power range | Up to 3kW |
| Motor technologies | Brushless DC or Servo (Integrated electronics or Standalone) |
| FieldBus options |
|
| Gearboxes | Planetary, Spur or Worm & wheel |
| Certifications | UL, STO and CE |
| Custom capabilities |
 - Full Custom Solutions, Modular Assemblies - Hardware Variations: shafts, cables, windings, coil, bearings, encoders etc. - Software Variations: programmability, STO, data – Setup
|
Integrated MotorsMotors with integrated controller reduce space requirements and simplify installation and startup, opening up a wide range of application areas
|
Planetary gearboxesDesigned for robustness, to sustain intermittent or sudden load changes and are ideally suited for precise positioning applications
|
