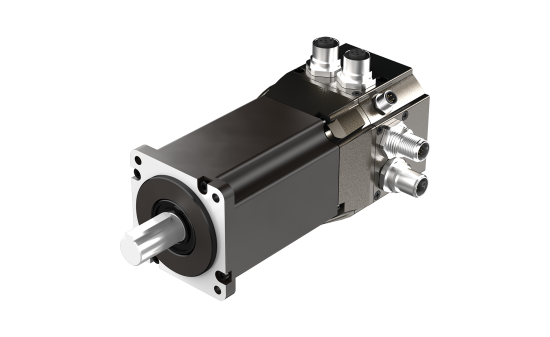

IVIX60

Our Servo Motors with integrated controller are among the most compact on the market. The powerful drive built directly into the motor reduces cabling and simplifies installation and setup, enhancing overall efficiency. These high-performing motors are IP65 rated, STO (Safe Torque Off) certified, and available with an optional integrated brake. All models support a wide range of Fieldbus protocols, including CANopen, Modbus-RTU, Modbus-TCP, EtherCAT, Profinet, EtherNet/IP and Powerlink.


More about Servo motors with Motion controller

IVIX60
.

Products
Product finder
Technology:
Category:
More Filters
Interface:
CANopen
CANopen
CANopen (programmable)
Ethercat
Ethernet IP
Modbus-RTU
Modbus TCP
Powerlink
Profinet

Product name
Size (mm)
Length (L) (mm)
Interface
Rated Power (Watt)
Rated Torque (Nm)
Safety feature
IVIX60 0200NX1000 M-S200 60 125 Modbus-RTU 200 0.64
IVIX60 0200NX1001 M-S200 60 125 Modbus-RTU 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NX1000 C-S200 60 125 CANopen (programmable) 200 0.64
IVIX60 0200NX1001 C-S200 60 125 CANopen (programmable) 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NX1000 C-S402 60 125 CANopen 200 0.64
IVIX60 0200NX1001 C-S402 60 125 CANopen 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NXX000 E-S402 60 125 Ethercat 200 0.64
IVIX60 0200NXX001 E-S402 60 125 Ethercat 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NXX000 T-S200 60 125 Modbus TCP 200 0.64
IVIX60 0200NXX001 T-S200 60 125 Modbus TCP 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NX2000 P-S200 60 125 Profinet 200 0.64
IVIX60 0200NX2001 P-S200 60 125 Profinet 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NX2000 R-S402 60 125 Powerlink 200 0.64
IVIX60 0200NX2001 R-S402 60 125 Powerlink 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0200NX2000 H-S200 60 125 Ethernet IP 200 0.64
IVIX60 0200NX2001 H-S200 60 125 Ethernet IP 200 0.64 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX1000 M-S200 60 146 Modbus-RTU 400 1.27
IVIX60 0400NX1001 M-S200 60 146 Modbus-RTU 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX1000 C-S200 60 146 CANopen (programmable) 400 1.27
IVIX60 0400NX1001 C-S200 60 146 CANopen (programmable) 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX1000 C-S402 60 146 CANopen 400 1.27
IVIX60 0400NX1001 C-S402 60 146 CANopen 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NXX000 E-S402 60 146 Ethercat 400 1.27
IVIX60 0400NXX001 E-S402 60 146 Ethercat 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NXX000 T-S200 60 146 Modbus TCP 400 1.27
IVIX60 0400NXX001 T-S200 60 146 Modbus TCP 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX2000 P-S200 60 146 Profinet 400 1.27
IVIX60 0400NX2001 P-S200 60 146 Profinet 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX2000 R-S402 60 146 Powerlink 400 1.27
IVIX60 0400NX2001 R-S402 60 146 Powerlink 400 1.27 Safe Torque Off (STO) SIL3/PLe
IVIX60 0400NX2000 H-S200 60 146 Ethernet IP 400 1.27
IVIX60 0400NX2001 H-S200 60 146 Ethernet IP 400 1.27 Safe Torque Off (STO) SIL3/PLe
